StarTech.com MPO Loopback Plug, Single Mode 9/125 MPO-8 Female Fiber Loopback Adapter, MPO/MTP-APC Connector Loopback Test Plug, MPO Female Loopback Tester

StarTech.com MPO Loopback Plug, Single Mode 9/125 MPO-8 Female Fiber Loopback Adapter, MPO/MTP-APC Connector Loopback Test Plug, MPO Female Loopback Tester

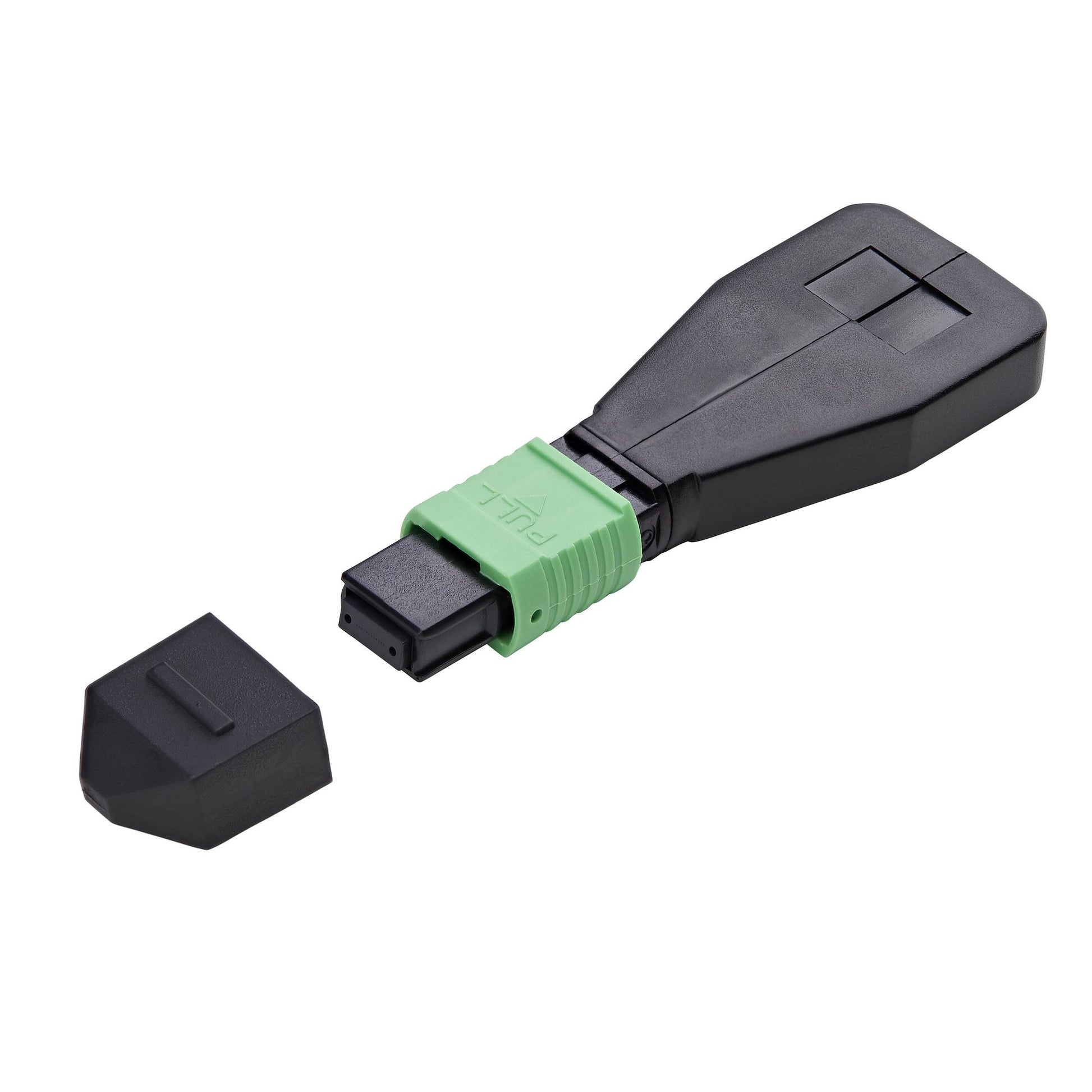

Create a loopback test connection with this MPO/MTP Single Mode 9/125um fiber loopback plug - Female MPO-8 connector for testing male MPO interfaces with fixed alignment pins - 8-fiber configuration supports loopback testing across single mode links in OS1 and OS2 networks - Angled Physical Contact (APC) polish minimizes back-reflection and ensures stable signaling - IEC and RoHS compliant; Maintain low insertion loss for reliable signal testing

Key features

• Reliable Fiber Testing : Create a loopback test connection with this MPO female Single Mode fiber loopback plug
• Female MPO-8 connector for testing male MPO interfaces with fixed alignment pins
• Test 8-fiber male MPO/MTP cables and interfaces for continuity
• Accurate Test Performance : Maintain precise loopback signaling with insertion loss below 0.35dB
• Repeatability within 0.2dB ensures consistent results across multiple connections
• Return loss above 50dB minimizes back-reflection for stable signaling
• Built for Durability : Optimized for multiple test cycles using high-precision ceramic ferrules in a compact ABS housing
• Built in compliance with IEC and RoHS standards for reliable testing in regulated environments

Product details

• Manufacturer part number: LOOPBACKMTPSM9125F
• Ingram SKU: 6816981
