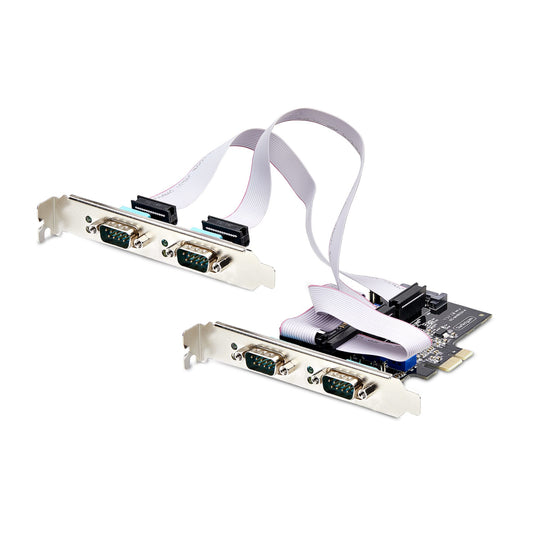

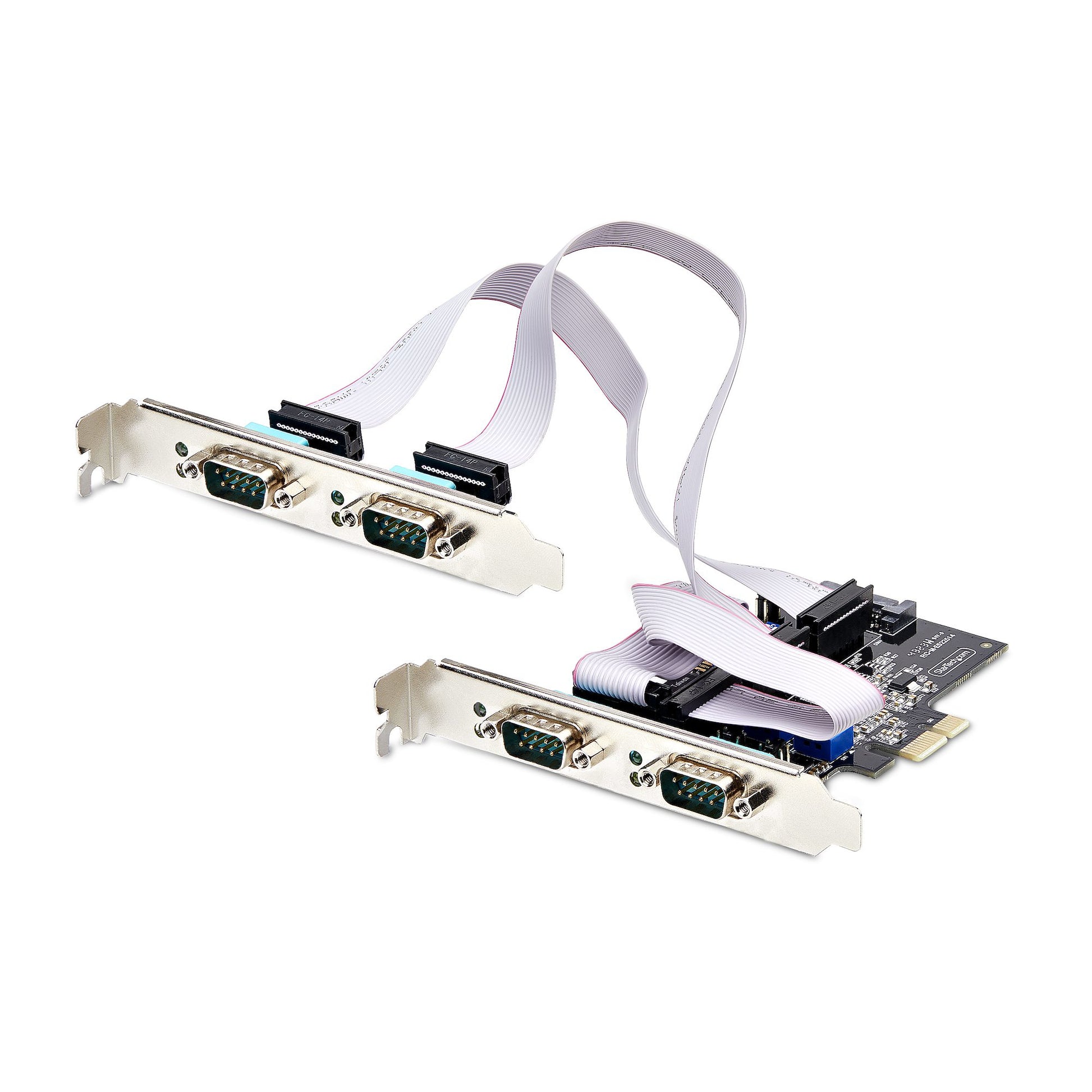

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Prote…
Brand New- SKU: 6128997
- Available: In Stock
- Vendor: StarTech.com
- Type: Brand New
Regular price
$435.26
Buy with confidence
Professionally quality tested
12-month local warranty
Fast New Zealand delivery
Secure checkout
Need multiple units or business pricing?
Request a quote →
Need help after purchase?
Support & Warranty →
StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Prote...
4-Port PCIe Serial Card features on-board DIP switches allowing each DB9 serial port to operate in RS-232/RS-422/RS-485 independently - On-board jumpers provide the option of 12V or 5V at 1.5A or the option for no power (RI); Each port can be configured individually - Two standard profile brackets pre-installed with four low-profile brackets included - 16C450/16C550/16C650/16C750/16C950 UART compatible - AX99100 Chipset - Supports Windows/Linux - Max Baud Rate: 921.6Kbps; 256 Byte FIFO
Key features
- 4-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices
- LED indicators to monitor data transmit/receive status
- CONFIGURABLE POWER: Quad-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power
- Per-Port power modes are individually configurable via jumpers
- APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes
- DB9 ports work with screw-locking cables
- STANDARD & LOW PROFILE BRACKETS: TAA-Compliant Serial Card is equipped with two standard profile brackets (pre-installed), and includes four low-profile brackets for compatibility with small form factor desktops/servers
- TECH SPECS: Asix AX99100 Chipset
Product details
- Manufacturer part number: PS74ADF-SERIAL-CARD
- Ingram SKU: 6128997
